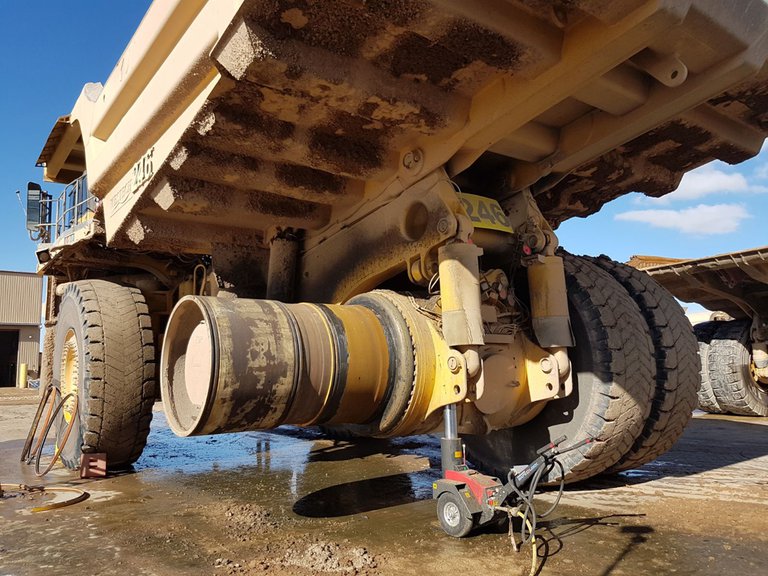

Safe D Lock® combines a high-tonnage hydraulic lifting jack and rated vehicle support stand in one compact system, designed for safer maintenance of heavy mining equipment.
Safe D Lock® Jack + Powerdrive
Lifting the Safety Standards on Heavy Mining Vehicle Jacks
Jack Systems
Safe D Lock® combines a high-tonnage hydraulic lifting jack and rated vehicle support stand in one compact system, designed for safer maintenance of heavy mining equipment.
77–200 US ton capacities
Mechanical locking throughout the lifting process
Automatic fail-safe engagement in the event of hydraulic failure
Optional POWERDRIVE for self-propelled positioning

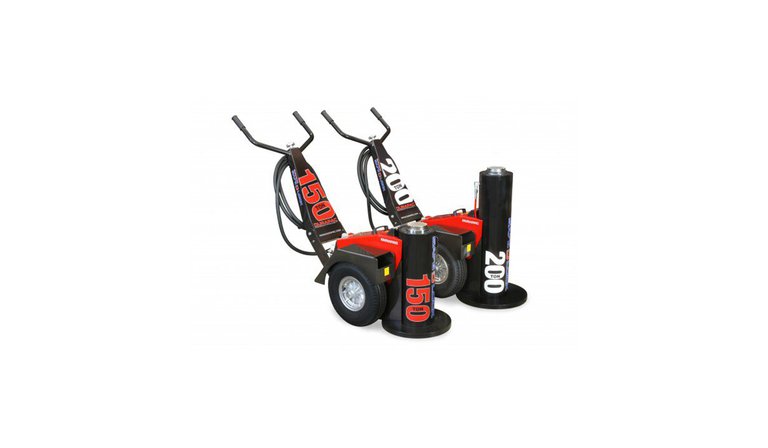

Safe D Lock® Jack + POWERDRIVE
Australian designed and built to meet AS/NZS 2693:2007 standard for vehicle jacks, it also meets AS/NZS 2538:2004 standard for vehicle support stands. The jack uses patented oil-bathed internal locking quadrants that are constantly energized during the lifting process to give a fail-safe operation. This locking mechanism automatically engages in the unlikely event of a hydraulic failure. The Safe D Lock jack is compact and portable and is the perfect choice for the workshop or service vehicle.
Patented fail safe automatically engages in unlikely event of hydraulic failure
Spring loaded mechanical locking system
Oil-bathed and totally enclosed to prevent contamination
Internal locking quadrants are constantly energized during the lifting process
Can be locked in 13 mm increments
Safe D Lock
Durapac's Safe D Lock Jack is the perfect choice for your workshop or service vehicle.
CAPACITY - 70 - 181 tonnes (77 - 200 US tons), Stroke Range 400 - 685 mm
HYDRAULIC SYSTEM - is powered by a Gast 3.9kW air motor
LOCK INDICATORS - confirm ‘locked’ and ‘unlocked’ status
LOCKING VALVES - dual hydraulic locking valves for added safety
LOAD LOWERING - counter balance valve for smooth controlled lowering of load
PNEUMATIC CONTROL VALVES - for precise lifting and lowering
Find
Find the model number below or download the complete Safe D Lock® Catalogue here.
*Note: Jack tonnage capacities listed below are adjusted to US ton. "PD" indicates models with Powerdrive.
SDL-07068/07068-PD
SDL-07081/0781-PD
SDL-10068/10068-PD
SDL-10081/10081-PD
SDL-15068/15068-PD
SDL-15096/15096-PD
SDL-20068/20068-PD
SDL-20096/20096-PD
