High pressure hydraulic fittings for Durapac hydraulic tools, pumps and equipment
Durapac
All fittings are rated to 700 bar working pressure with a 4:1 safety factor and each fitting is permanently marked with its respective part number and working pressure.
Durapac High Pressure Hydraulic Fittings allow for easy connection and assembly of Durapac Hydraulic Tools, Pumps, Power Units and equipment. All fittings are rated to 700 bar working pressure with a 4:1 safety factor and each fitting is permanently marked with its respective part number and working pressure.
Easily connect and assemble tools
Compatible with all Durapac 700 bar working pressure equipment
Fittings are a 700 bar design with a 4:1 safety factor

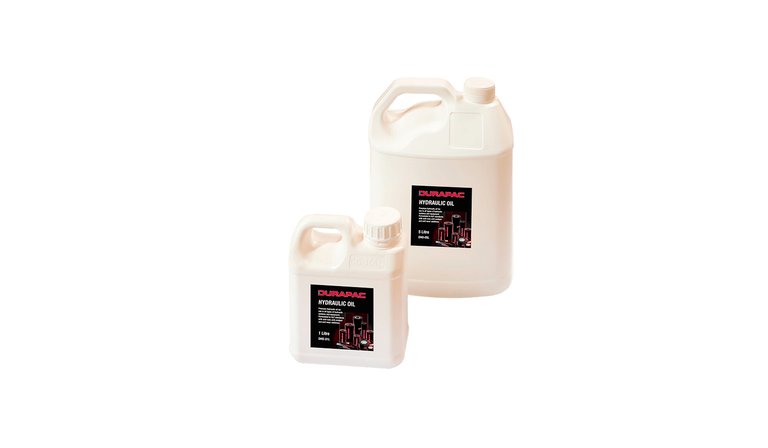

DHO-Series Hydraulic Oil is premium hydraulic oil; Renolin B Plus, for use in all types of hydraulic systems and equipment. It is formulated to HLP standards with anti-rust, anti-oxidant and anti-wear additives.
Based on high grade, special raffinates with additives to improve resistance to ageing
Durapac Hydraulic Oils rapidly separate water & avoid the formation of water and oil sludge
Durapac Hydraulic Oils are tested for 168 hours at 1000C
Models are available from 63-150 mm face diameter and feature high quality stainless steel construction. Analogue models are liquid filled to increase longevity and are accurate to within 1% excluding model Pg-63 (1.6%). The battery powered PGD-75 digital pressure gauge can be programmed with a cylinder effective area and quickly set to read in force measurements (kN, tonnes, kgs). It is ideal for testing applications requiring a force measurement and is accurate to within 0.25%.
PG-Series gauges are recommended for monitoring all hydraulic systems

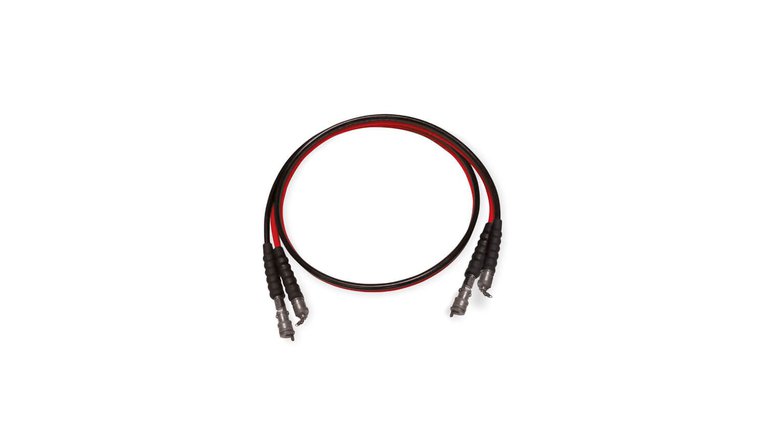

The HPS-Series Hydraulic 1/4" & 3/8" Hoses are a high pressure thermoplastic hose that exceeds the American Jacking Specifications IJ100 for use in applications to 700 bar. The hose is made up by an inner tube that is polyester elastomer and is reinforced by braids of aramid fibre plus one braid of steel wire covered with polyurethane (anti abrasive) outer.
The hose is made up by an inner tube that is polyester elastomer
Reinforced by aramid fibre braids plus one braid of steel wire with a polyurethane coating
Durapac In Line Flow Control Valves allow the system designer great flexibility and control. Available options include a needle type flow control valve, two and four outlet needle valve blocks and check valve with manual by-pass. The VCB-1 load lowering counter balance valve offers smooth, chatter-free lifting and lowering when used with double acting cylinders. It has a pilot pressure adjusting range of 50-350 bar and can be mechanically locked once set.
Allow the system designer great flexibility and control
VCB-1 load lowering counter balance valve offers smooth, chatter free lifting and lowering

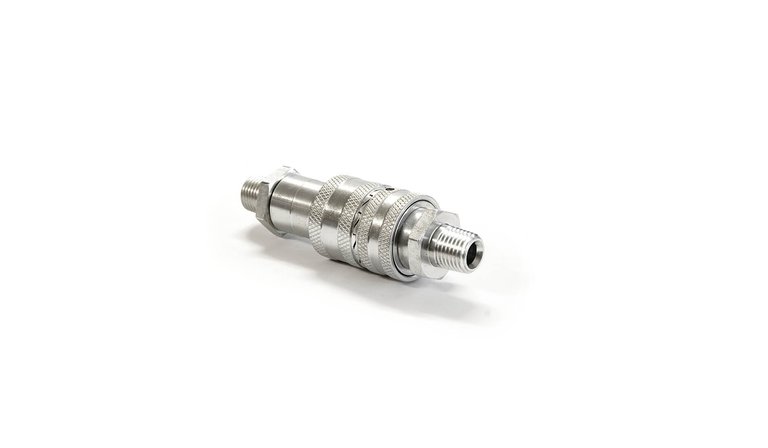

Durapac Hydraulic Couplings offer the user various options for easy assembly and connection of hydraulic systems and tools.The CR-6 female high flow screw coupling with dust cap is a standard supply on all Durapac cylinders. Other options available include 1/8" and 1/4" screw style couplings and snap together style where no oil spill on connection or disconnection is desirable. The GCS-210 is a gauge coupling set and is ideal for use when the pressure gauge needs to be removed from a system for protection and transportation.
Various options for easy assembly & connection of hydraulic systems and tools
The CR-6 female high flow screw coupling with dust cap is standard supply on all Durapac cylinders

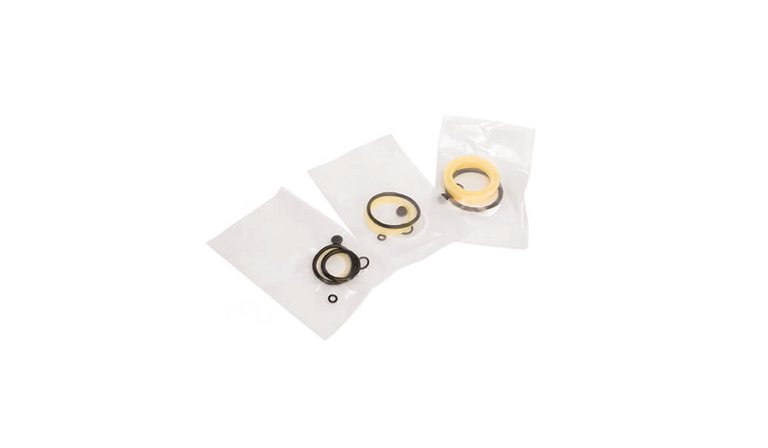

Durapac offers a complete range of seal kits to suit its range of cylinders, tools and equipment.
Complete seal kits to suit popular cylinder series and/or models
Find

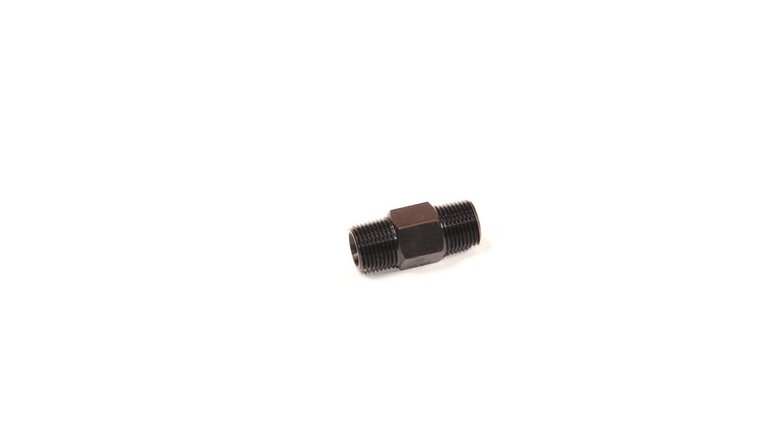

FN-1 – 3/8″-NPT male hex nipple
FN-3 – 3/8″-NPT male hex nipple x 80mm overall length
FE-7 – 3/8″-NPT female/female 90o elbow
FE-9 – 3/8″-NPT male/female 90o elbow
FT-11 – 3/8″-NPT female/female/female tee
FS-13 – 3/8″-NPT female hex socket
FC-15 – 3/8″-NPT female four port cross
FR-16 – 3/8″-NPT male x 1/4″-NPT female reducing bush
FN-27 – 1/4″ male x 3/8″-NPT male hex nipple
FGA-1 – 3/8″-NPT male x 3/8″-NPT female x 1/4″-NPT female gauge adapter on angle
FGA-18 – 3/8″-NPT male x 3/8″-NPT female x 1/4″-NPT female gauge adaptor
FN-26 – 1/4″ male hex nipple
FGA-2 – 3/4″-16UNF x 9/16″-18UNF x 9/16″-18UNF 2,800 bar W.P gauge adapter. Includes connection nipples to suit pressure gauge & hand pump
PG-63 – 63 mm diameter, 0-1,000 bar / 0-14,500 psi, 1/4″-NPT Male

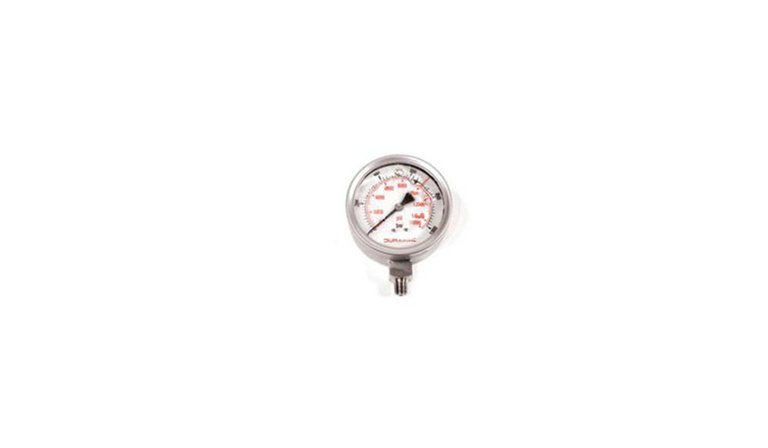

PG-100 – 100 mm diameter, 0-1,000 bar / 0-14,500 psi, 1/4″-NPT Male
PG-100-40K – 100 mm diameter, 0-2,700 bar / 0-40,000 psi, 9/16″-18UNF Female
PG-100-60K – 100 mm diameter, 0-4,000 bar / 0-60,000 psi, 9/16″-18UNF Female
PG-150 – 150 mm diameter, 0-1,000 bar / 0-14,500 psi, 1/4″-NPT Male
PGD-75 – 75 mm diameter, 0-800 bar / 0-11,600 psi, 1/4″-NPT Male
VCB-1 – Load lowering counter balance valve
VMN-2 – 2 way aluminum bodied manifold with needle valves
VMN-4 – 4 way aluminium bodied manifold with needle valves
VNV-1 – 3/8″-NPT female needle valve
RM-7S – 7 port steel bodied return manifold
RM-7L – 7 port steel bodied return manifold

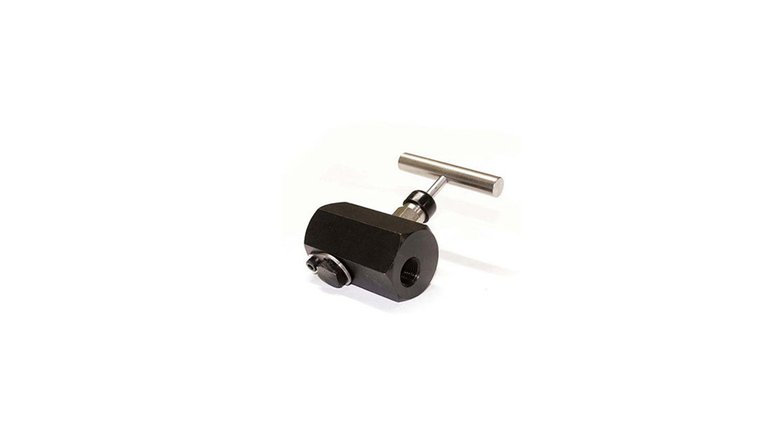

VCV-66 – 3/8″-NPT female load lowering check valve with manual bypass
VMN-2M – 2 way steel bodied manifold with needle valves
VMN-4M – 4 way steel bodied manifold with needle valves
CH-2 – 1/8″ male coupling with dust cap
CR-2 – 1/8″ female coupling with dust cap
CS-2 – Coupling set with dust caps
CH-4 – 1/4″ male coupling with dust cap
CR-4 – 1/4″ female coupling with dust cap
CS-4 – Coupling set with dust caps
CH-6 – 3/8″ male coupling with dust cap
CR-6 – 3/8″ female coupling with dust cap
CS-6 – Coupling set with dust caps
UDC-1 – Universal dust cap to suit 3/8″ male and female couplings
CFH-6 – Male half snap coupling with dust cap
CFR-6 – Female half snap coupling with dust cap
CFS-6 – Snap coupling set with dust caps includes CFH-6 and CFR-6
GCS-210 – Gauge coupling set with dust caps. Compact pin design
