Locking Collar

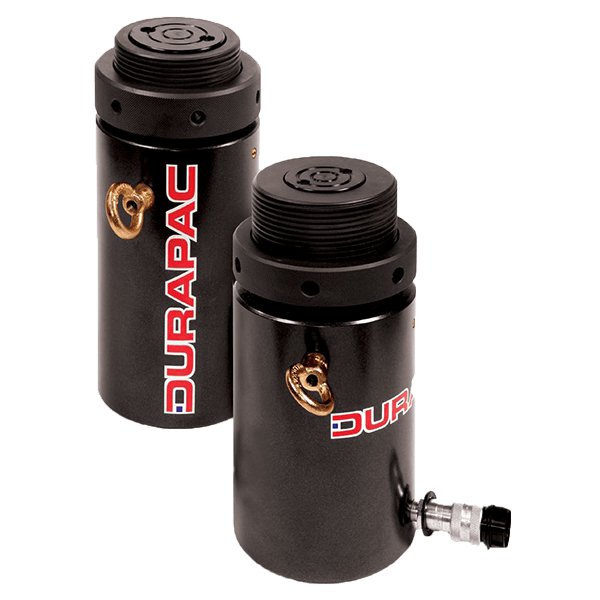

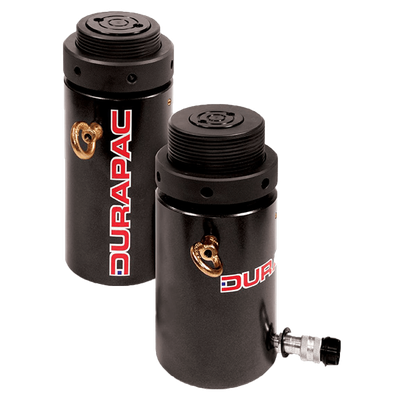

Features a threaded piston rod and lock ring. When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. Ideally suited to bridge construction, maintenance, and jacking applications requiring safe extended load holding. Hardened removable saddles are standard and TSX tilt saddles are optional. An oil overflow port to restrict piston stroke is standard on all models.

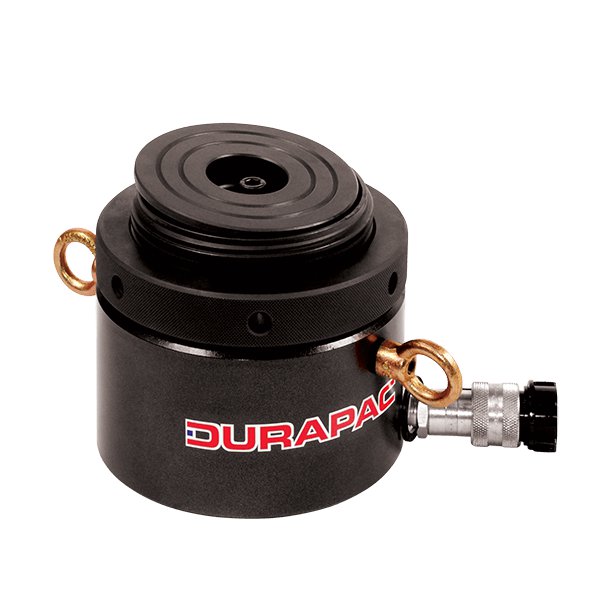

When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. Hoses and pumps can be removed until lowering is required and are ideally suited to bridge construction and maintenance. Integral tilt saddle and an oil overflow port to restrict piston stroke is standard on all models.

The ARSLC-Series is a Single Acting, Spring Return, Locking Collar, Aluminum Cylinder that is ideal for use in applications where weight and portability are paramount. The design features a threaded piston rod and lock ring. When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. These cylinders are ideally suited to applications requiring safe extended load holding.
