Lightweight

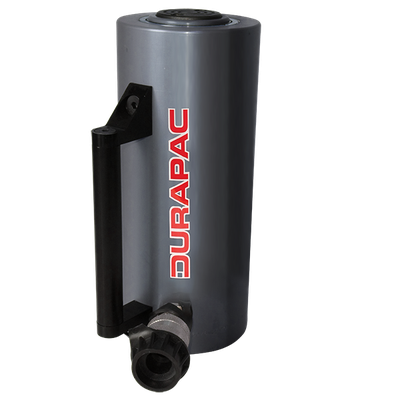

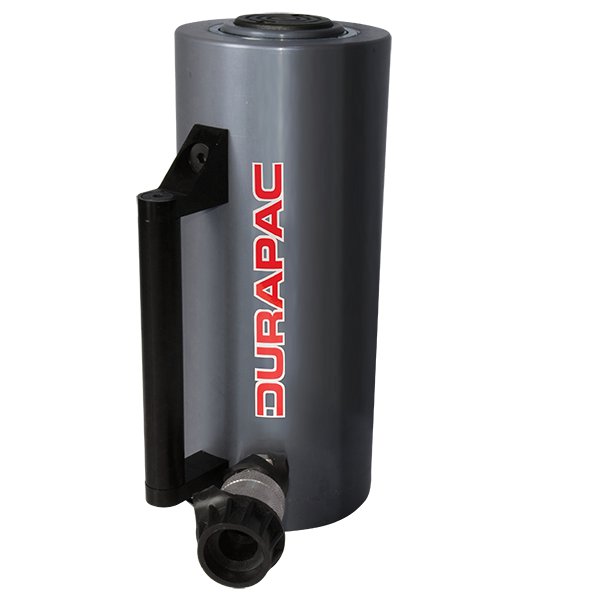

A lightweight high strength aluminum spring return cylinder that is ideal for use in applications where weight and portability are paramount.

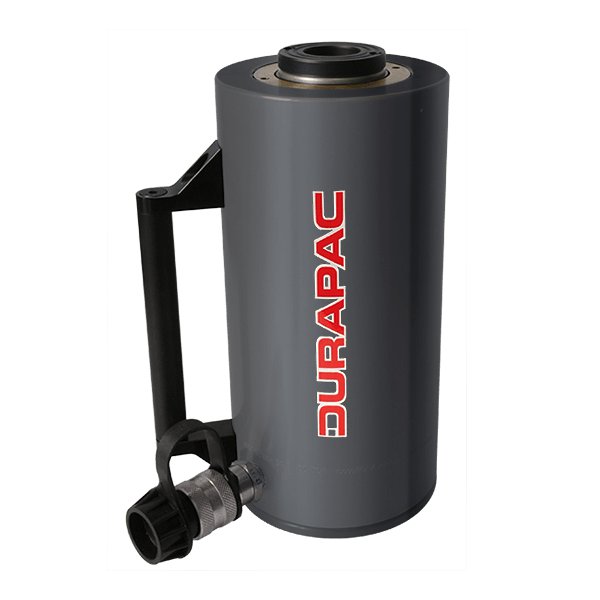

The ARHS-Series is a Single Acting, Spring Return, Hollow Piston Rod, Aluminum Cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing, bush extracting and maintenance applications where weight and portability are paramount.

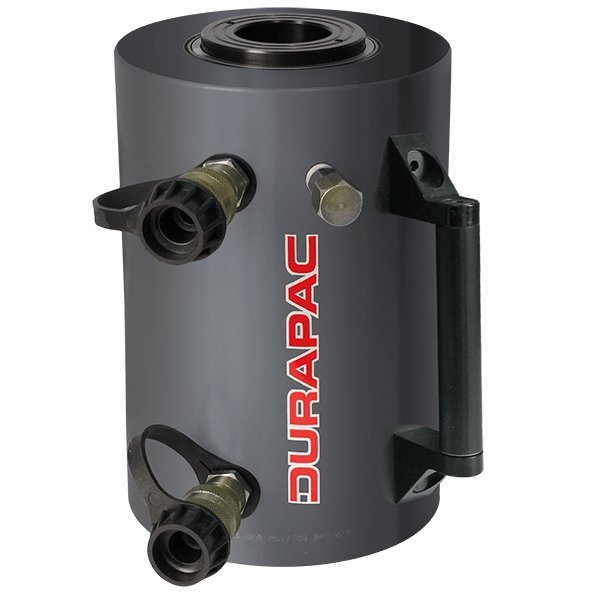

The ARHD-Series is a Double Acting, Hollow Piston Rod, Aluminum Cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length, while the double acting design improves speed of operation when longer stroke cylinders are required. They can be used in tensioning, load testing and maintenance applications where weight and portability are paramount.

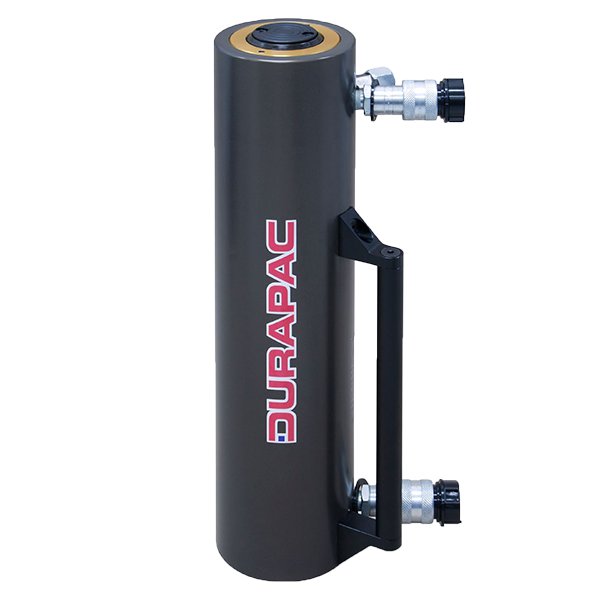

The ARD-Series is a Lightweight, Double Acting, Aluminum Cylinder that is ideal for use in applications where weight and portability are paramount. They are perfect for bridge lifting, machinery maintenance and other non production applications.

The ARSLC-Series is a Single Acting, Spring Return, Locking Collar, Aluminum Cylinder that is ideal for use in applications where weight and portability are paramount. The design features a threaded piston rod and lock ring. When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. These cylinders are ideally suited to applications requiring safe extended load holding.

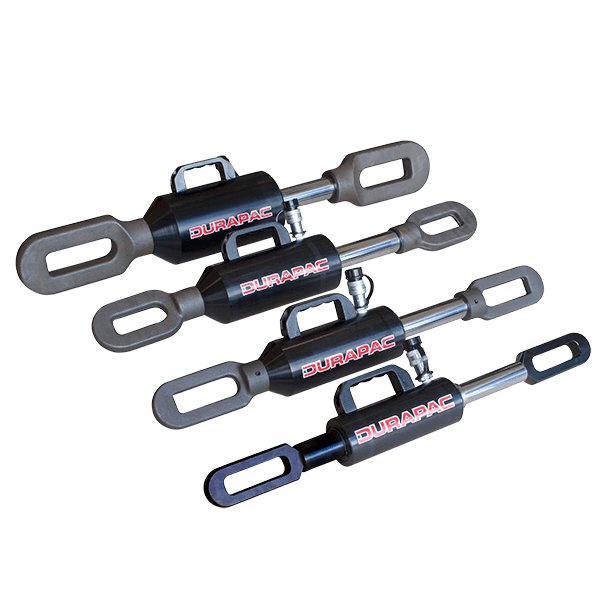

The RAP-Series is a lightweight, Spring Return, Aluminum Pull Cylinder used in steel structural works, ship building and tower tensioning.
