The RJ-series is a single acting spring return cylinder. It is ideally suited to jacking, testing, weighing and general maintenance applications that require a high tonnage short stroke cylinder design in capacities beyond the 100 ton RLP series.
General Purpose, High Tonnage Cylinder
The RJ-series is a single acting spring return cylinder. It is ideally suited to jacking, testing, weighing and general maintenance applications that require a high tonnage short stroke cylinder design in capacities beyond the 100 ton RLP series.
Stroke: 50-100 mm
Capacity: 150-200 ton

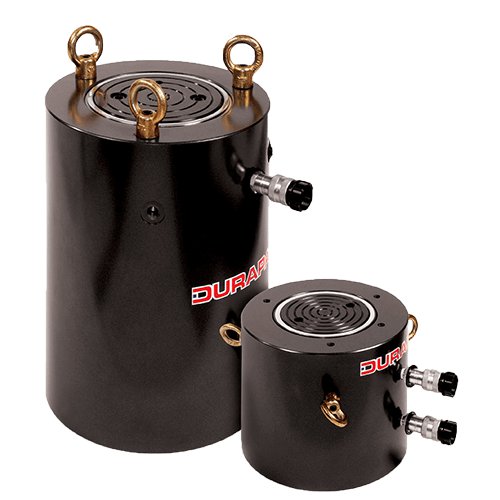

Double Acting, High Tonnage Cylinder
The RDHG-series is a double acting high tonnage cylinder range up to 1,600 ton capacity. For use in civil construction, heavy jacking, stressing beds and other high load applications.
Stroke: 50-300 mm
Capacity: 50-1,600 ton

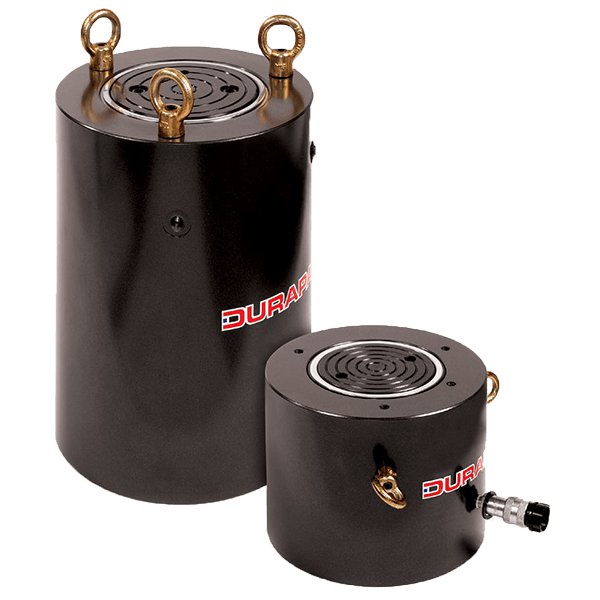

Load Return, High Tonnage Cylinder
The RSHG-Series is a Single Acting, Load Return, High Tonnage Cylinder range up to 1,000 ton capacity. They are ideally suited for use in civil construction, heavy jacking and other high load applications.
Stroke: 50-300 mm
Capacity: 50-1,000 ton

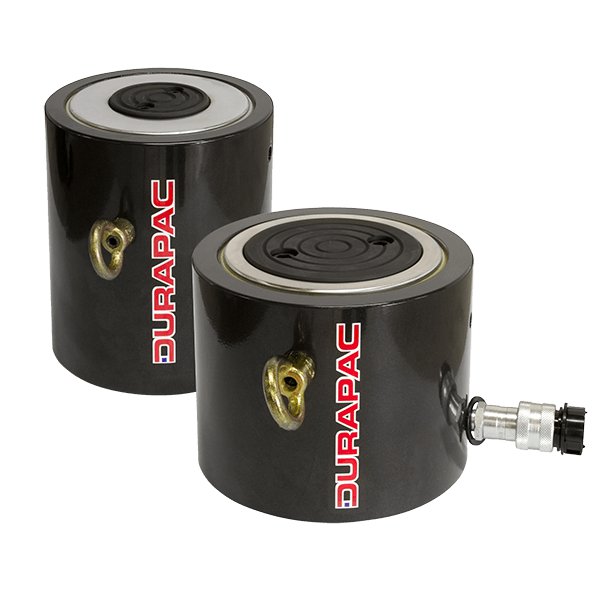

Low Profile, High Tonnage Cylinder
The RSH-Series is a Single Acting, Load Return, High Tonnage Cylinder offering the lowest collapsed height. They are ideally suited for use in civil construction, heavy jacking and other high load applications in confined spaces.
Stroke: 50-300
Capacity: 50-1,000 ton
High Tonnage, Locking Collar Cylinder
Features a threaded piston rod and lock ring. When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. Ideally suited to bridge construction, maintenance, and jacking applications requiring safe extended load holding. Hardened removable saddles are standard and TSX tilt saddles are optional. An oil overflow port to restrict piston stroke is standard on all models.
Stroke: 50-300 mm
Capacity: 50-1,000 ton
