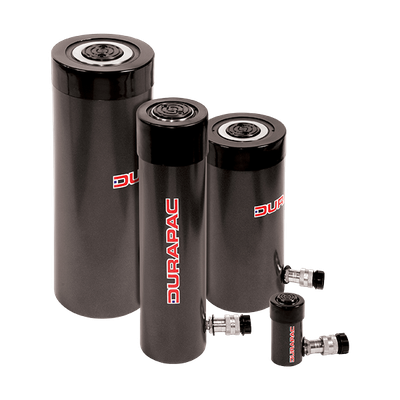

The RG-Series is a Single Acting, General Purpose, Spring Return Cylinder designed for use in production, maintenance and fabrication applications.
Cylinders
Versatile, general purpose cylinders up to a 200 ton capacity
Durapac
All cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance and bronze overlay piston bearing area to reduce side load-induced damage and extend cylinder life. Gland nuts receive a low friction coating to withstand full dead end loading.

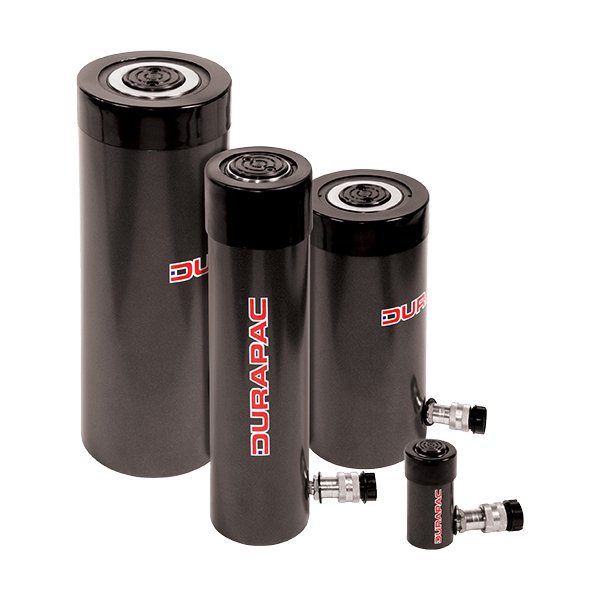

General Purpose Cylinder
The RG-Series is a Single Acting, General Purpose, Spring Return Cylinder designed for use in production, maintenance and fabrication applications.
Stroke: 16-362 mm
Capacity: 5-100 ton

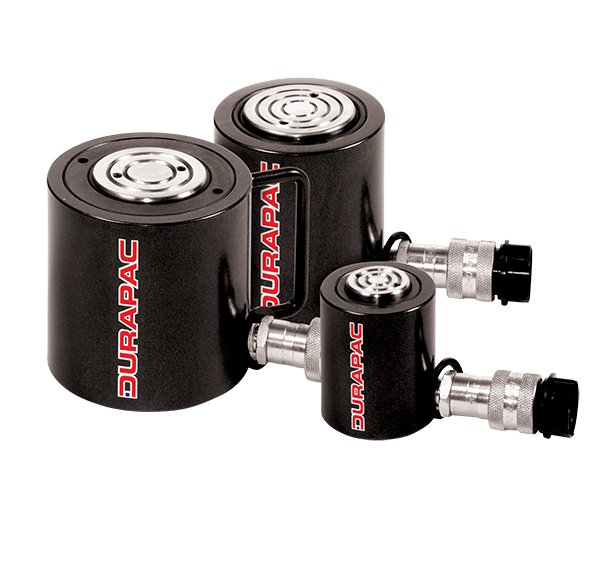

Compact, Low Profile Cylinder
Commonly used in construction, mining, and rail - ideal for jacking, weighing, testing, levelling and general maintenance applications. Optional TSL tilt saddles are available for all models.
Stroke: 36-62 mm
Capacity: 10-100 ton

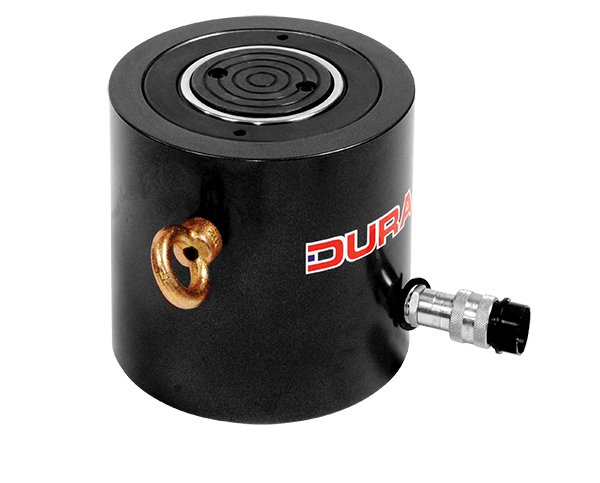

General Purpose, High Tonnage Cylinder
The RJ-series is a single acting spring return cylinder. It is ideally suited to jacking, testing, weighing and general maintenance applications that require a high tonnage short stroke cylinder design in capacities beyond the 100 ton RLP series.
Stroke: 50-100 mm
Capacity: 150-200 ton
Hollow Piston Rod Cylinder
The RHS-series is a spring return, high tonnage, hollow piston rod cylinder offering the lowest collapsed height. They can be used in tensioning, load testing, bush extracting and maintenance applications.
Stroke: 8-155 mm
Capacity: 12-100 ton
Lightweight, High Strength Cylinder
A lightweight high strength aluminum spring return cylinder that is ideal for use in applications where weight and portability are paramount.
Stroke: 50-254 mm
Capacity: 30-150 ton
Heavy Duty, Collar Thread Cylinder
Double Acting, Heavy Duty, Collar Thread Cylinder for use in industrial applications that require a versatile, high power and precise positioning of heavy loads. All RD-Series cylinders can be used in high working cycle applications and are perfect for bridge lifting, hydraulic presses, construction and maintenance applications.
Stroke: 57-1,219 mm
Capacity: 10-500 ton
