Commonly used in construction, mining, and rail - ideal for jacking, weighing, testing, levelling and general maintenance applications. Optional TSL tilt saddles are available for all models.
Cylinders
Reducing cylinder size without compromising capacity
Durapac
All cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance and bronze overlay piston bearing area to reduce side load-induced damage and extend cylinder life. Gland nuts receive a low friction coating to withstand full dead end loading.
Compact, Low Profile Cylinder
Commonly used in construction, mining, and rail - ideal for jacking, weighing, testing, levelling and general maintenance applications. Optional TSL tilt saddles are available for all models.
Stroke: 36-62 mm
Capacity: 10-100 ton
Low Profile, High Tonnage Cylinder
The RSH-Series is a Single Acting, Load Return, High Tonnage Cylinder offering the lowest collapsed height. They are ideally suited for use in civil construction, heavy jacking and other high load applications in confined spaces.
Stroke: 50-300
Capacity: 50-1,000 ton

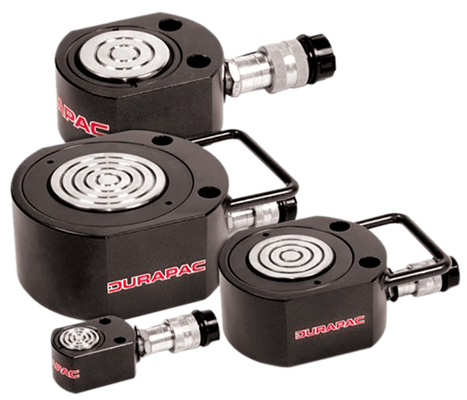

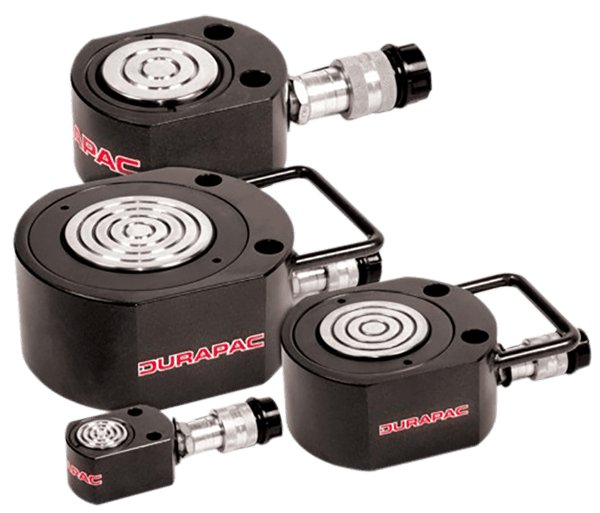

Flat, Compact, Single Acting Cylinder
For maintenance, machinery levelling, construction and mining applications. Mounting holes are standard on all models and a grooved piston rod end improves load grip. For applications requiring extra closed height flexibility the RFJ stack plate kits from 5-30 ton capacity are the perfect tool.
Stroke: 6-16 mm
Capacity: 5-150 ton
Pancake, Locking Collar Cylinder
When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. Hoses and pumps can be removed until lowering is required and are ideally suited to bridge construction and maintenance. Integral tilt saddle and an oil overflow port to restrict piston stroke is standard on all models.
Stroke: 45-50 mm
Capacity: 60-500 ton
