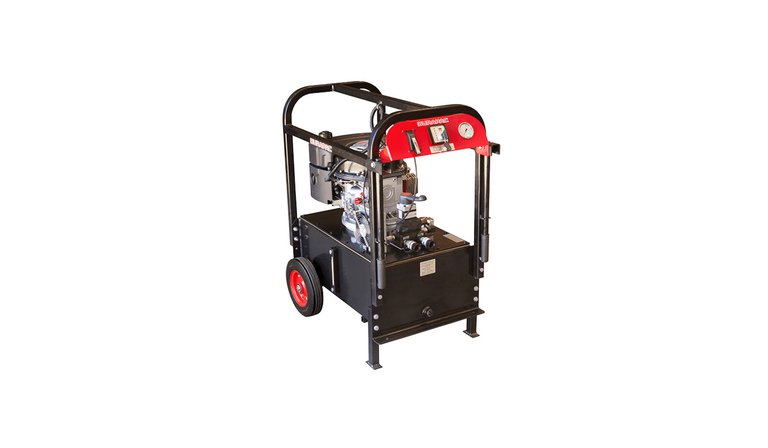

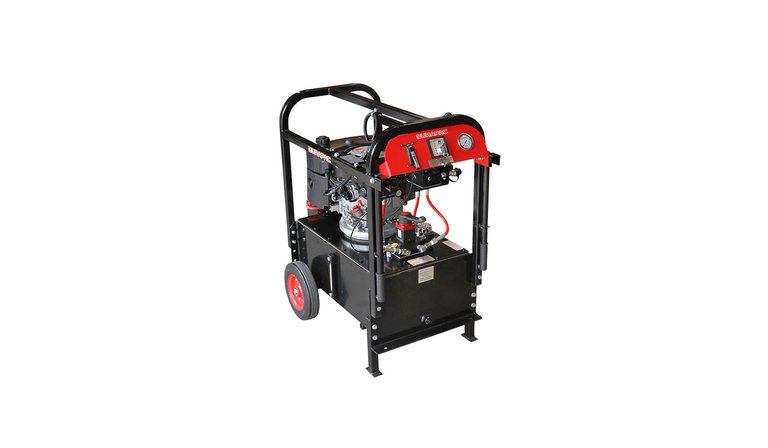

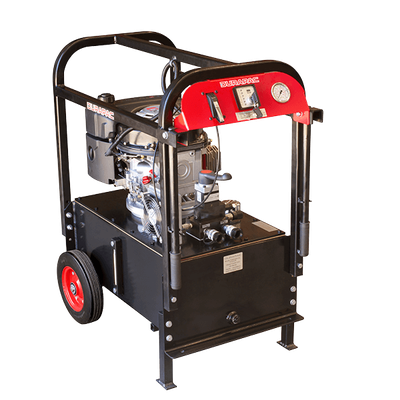

The PD-Series Diesel Driven Single Speed Radial Piston Power Units are suitable for heavy-duty applications in the field and can deliver a minimum flow of 2.5 Lpm at 700 bar pressure. It has a 50 L usable oil capacity coupled with the reliability of a 3.4kW Hatz® diesel motor. The transport system is easy to handle and incorporates an engine control dashboard. PDS models have a remote control pendant (on a 4M lead) for actuation of solenoid valves.
All power units have an externally adjustable pressure relief valve and offer a range of directional control valve options to operate single and double-acting cylinders and tools. An optional sub-plate style pilot check valve is also available.
